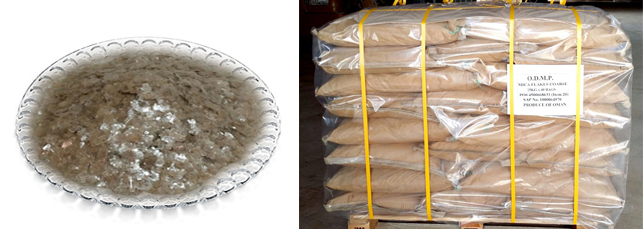

Mica LCM Coarse


Mica flakes, seized in Fine and Coarse grades, is essentially used in Loss Circulation applications during drilling operations. Mika flakes can be used in water-based and oil based mud drillings operations as a mud additive chemical to prevent loss of circulation and seepage. Mica is added in particular to seal-off the loss circulation zones. The platy structure of mica facilitates the overlapping of particles to form a layer or wall and acts as a sealant that bridges the openings. The use of mica helps to seal porous formations and contributes to regain circulation, thus keeping the solids in suspension.

Packing: in 25 Kg multiwall paper bags

PROPERTY REQUIRED
Particle size distribution Between 2000 - 5000 microns

Material Safety Data Sheet

1. Other Names

2. SAP No
1000064970.

3. Supplier
Oman Drilling Mud Products Co.LLC.

4. Composition
Proprietary Chemicals: KAI2(AISi3O10)(OH)2.

5. Appearance and odour
White, Silvery, solid, odourless, flakes.

6. Usage
Drilling additive - lost circulation control material.

7. Physical properties at 20 C, 1013 mbar
Density (kg/m3): 2600 (bulk).
Boiling Point (°C):
Melting Point (°C):
Flash Point (°C):
Auto ignition temp (°C):
Flammability limit (%v/v):
Rel. vapour density (air=1):
Vapour pressure (mbar):
Kinematic viscosity (mm2/s):
Solubility in water (kg/m3): insoluble.
pH :
Particle size (micron):

8. Important characteristics
Incompatibilities: none.
Occupational exposure limit TLV (ACGIH): TWA 10mg/m3 (respirable dust).

9. Safety hazards
Fire: non-combustible.
Stability: stable under normal conditions.

10. Safety precautions
None.

11. Fire extinguishing agents
No limitations.

12. Fire fighting precautions
Breathing apparatus.

13. Health hazards
Inhalation: irritant.
Skin: slight or no effect.
Eyes: irritant.
Ingestion: slight or no effect.

14. First aid
Remove to fresh air.
Wash with water, use soap.
Flush with water, obtain medical attention if eye irritation persists.
Obtain medical attention.
DO NOT INDUCE VOMITING.

15. Personal protection
Normal usage: chemical mono-goggles, PVC gloves.
In the event of inhalation risk wear general purpose dust respirator NPF 7 - 10.
Spill control/clean-up: as above.

16. Environmental hazards
Insignificantly toxic to aquatic life.

17. Environmental precautions
Avoid gross contamination of soil and water.

18. Spillage mitigation (see also 15)
Scoop up and collect in container, disperse
remainder with plenty of water.

19. Disposal options
Preferred: dispose of at (controlled) landfill site
Acceptable: as above
THE DISPOSAL OPTION CHOSEN MUST BE ACCEPTABLE WITHIN THE REQUIREMENTS OF OPERATIVE LEGLISATION

20. Storage
Keep dry, ventilate dust to a minimum

21. Packing and labelling
Multiwall sacks or big bags.
UN number:
Label: no label required.

22. Supplementary information
Health: can cause lung fibrosis.
Safety:
Environment: finely divided solids may cause hindrance to aquatic life.
